Description
Description

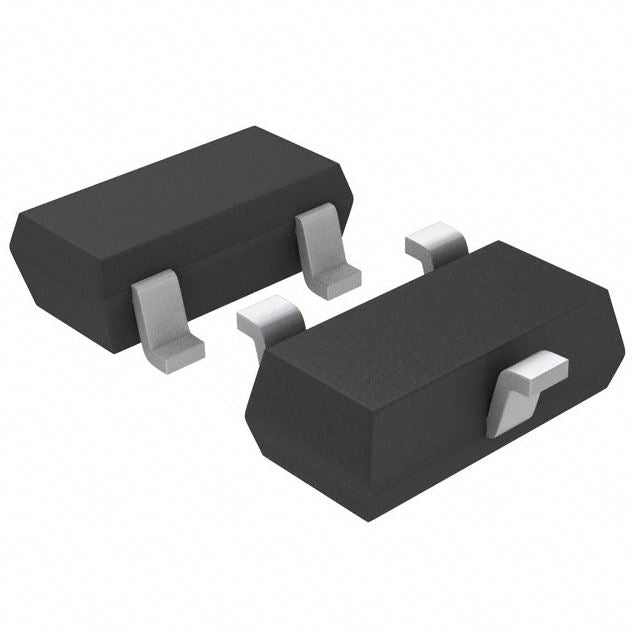

P-Channel 100 V 120mA (Tj) 360mW (Ta) Surface Mount TO-236AB (SOT23)
| Product Attribute | |
| Manufacturer | Microchip Technology |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 120ma (Tj) |
|
Drive Voltage (Max Rds On, Min Rds On)
|
5V, 10V |
| Rds On (Max) @ Id, Vgs | 12Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 1mA |
| Vgs (Max) | ±20V |
|
Input Capacitance (Ciss) (Max) @ Vds
|
60 pF @ 25 V |
|
Power Dissipation (Max)
|
360mW (Ta) |
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
| Mounting Type | Surface Mount |
| Datasheet | Datasheet |
