Description
Description

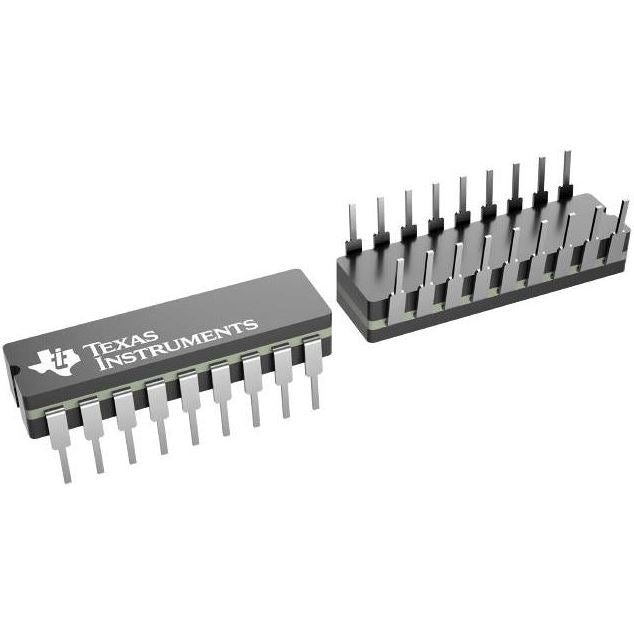

Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive and Negative Output Step-Up/Step-Down DC-DC Controller IC 18-CDIP
| Product Attribute | |
| Manufacturer | Texas Instruments |
|
Output Type
|
Transistor Driver
|
|
Function
|
Step-Up/Step-Down
|
|
Output Configuration
|
Positive and Negative
|
| Topology |
Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
|
|
Number of Outputs
|
2 |
|
Output Phases
|
1 |
|
Voltage - Supply (Vcc/Vdd)
|
8V ~ 35V
|
|
Frequency - Switching
|
1Hz ~ 400kHz
|
|
Duty Cycle (Max)
|
49%
|
|
Synchronous Rectifier
|
Yes
|
|
Clock Sync
|
Yes
|
|
Control Features
|
Enable, Frequency Control, Reset, Soft Start
|
|
Operating Temperature
|
-55°C ~ 125°C (TA)
|
| Mounting Type | Through Hole |
| Datasheet | Datasheet |
