Description
Description

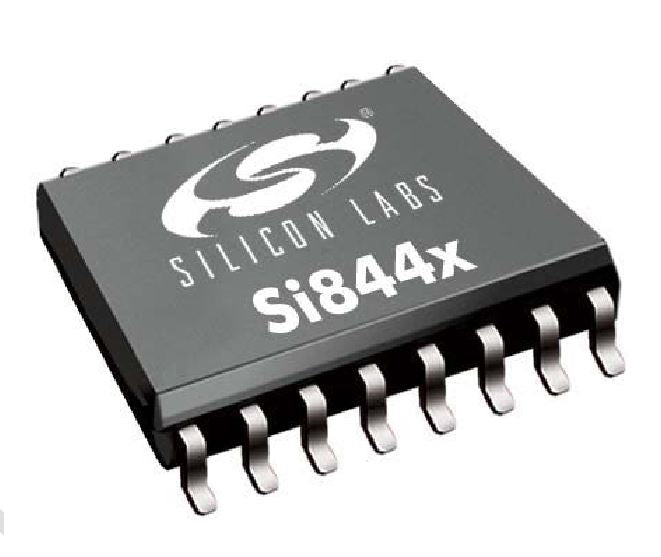

General Purpose Digital Isolator 2500Vrms 4 Channel 150Mbps 25kV/µs (Typ) CMTI 16-SOIC (0.295", 7.50mm Width)
| Product Attribute | |
| Manufacturer | Silicon Labs |
| Technology |
Capacitive Coupling
|
| Type |
General Purpose
|
|
Isolated Power
|
No |
|
Number of Channels
|
4 |
|
Inputs - Side 1/Side 2
|
3/1
|
|
Channel Type
|
Unidirectional
|
|
Voltage - Isolation
|
2500Vrms
|
|
Common Mode Transient Immunity (Min)
|
25kV/µs (Typ)
|
|
Data Rate
|
150Mbps
|
|
Propagation Delay tpLH / tpHL (Max)
|
9.5ns, 9.5ns
|
|
Pulse Width Distortion (Max)
|
2.5ns
|
|
Rise / Fall Time (Typ)
|
3.8ns, 2.8ns
|
|
Voltage - Supply
|
2.7V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 125°C
|
| Mounting Type | Surface Mount |
| Datasheet | Datasheet |
