Description
Description

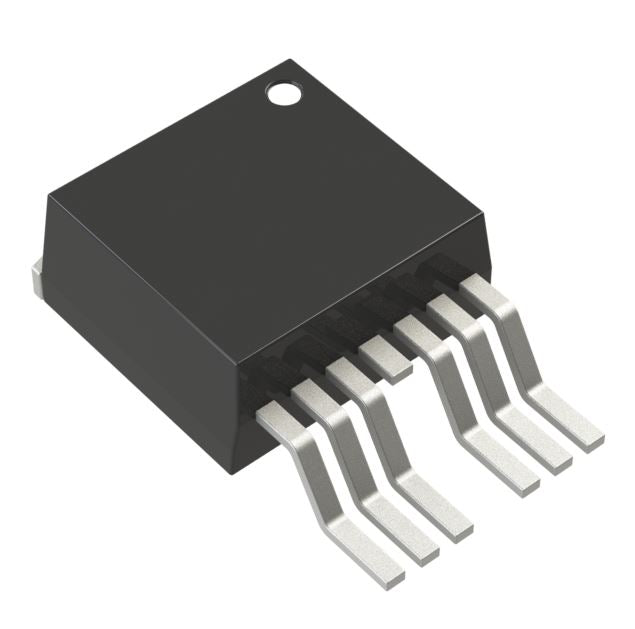

N-Channel 100 V 180A (Tc) 480W (Tc) Surface Mount TO-263-7 (IXTA)
| Product Attribute | |
| Manufacturer | IXYS/Littelfuse Inc. |
|
FET Type
|
N-Channel |
|
Technology
|
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss)
|
100 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
180A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V |
|
Rds On (Max) @ Id, Vgs
|
6.4mOhm @ 25A, 10V
|
|
Vgs(th) (Max) @ Id
|
4.5V @ 250µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
151 nC @ 10 V
|
|
Vgs (Max)
|
±30V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
6900 pF @ 25 V
|
|
Power Dissipation (Max)
|
480W (Tc)
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
| Mounting Type | Surface Mount |
| Datasheet | Datasheet |
