Description
Description

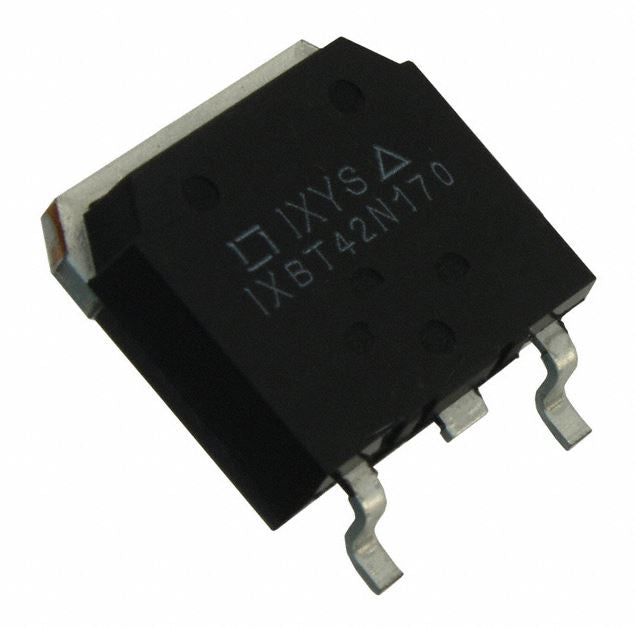

IGBT 1700 V 80 A 360 W Surface Mount TO-268AA
| Product Attribute | |
| Manufacturer | IXYS/Littelfuse Inc. |
|
Voltage - Collector Emitter Breakdown (Max)
|
1700 V
|
|
Current - Collector (Ic) (Max)
|
80 A
|
|
Current - Collector Pulsed (Icm)
|
300 A
|
|
Vce(on) (Max) @ Vge, Ic
|
2.8V @ 15V, 42A
|
|
Power - Max
|
360 W
|
|
Input Type
|
Standard |
|
Gate Charge
|
188 nC
|
|
Reverse Recovery Time (trr)
|
1.32 µs
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
| Mounting Type |
Surface Mount
|
| Datasheet | Datasheet |
