Description
Description

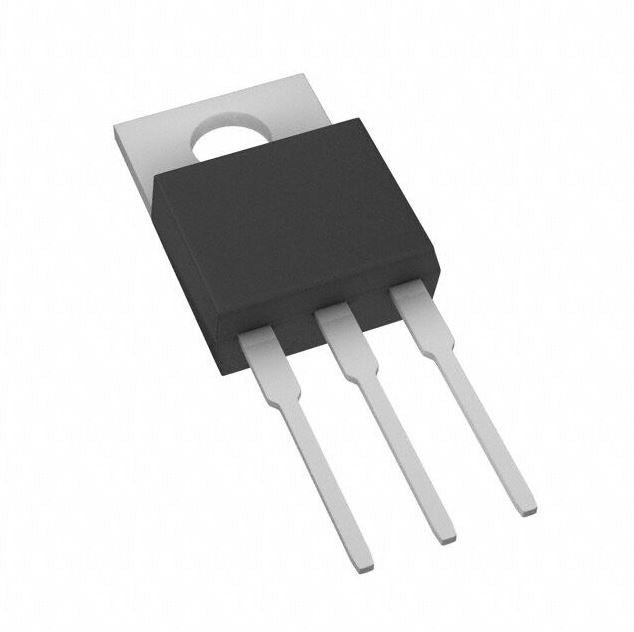

N-Channel 400 V 3.3A (Tc) 50W (Tc) Through Hole TO-220AB
| Product Attribute | |
| Manufacturer | Vishay Siliconix |
|
FET Type
|
N-Channel |
| Technology | MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss)
|
400 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
3.3A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
Rds On (Max) @ Id, Vgs
|
1.8Ohm @ 2A, 10V
|
|
Vgs(th) (Max) @ Id
|
4V @ 250µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
20 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
410 pF @ 25 V
|
|
Power Dissipation (Max)
|
50W (Tc)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
| Mounting Type | Through Hole |
| Datasheet | Datasheet |
