Description

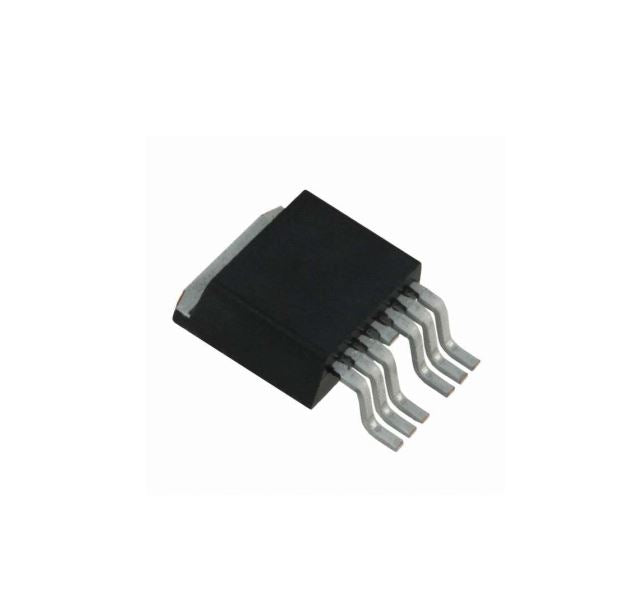

N-Channel 120 V 180A (Tc) 300W (Tc) Surface Mount PG-TO263-7
| Product Attribute | |
| Manufacturer | Infineon Technologies |
|
FET Type
|
N-Channel |
|
Technology
|
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss)
|
120 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
180A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V |
|
Rds On (Max) @ Id, Vgs
|
3.6mOhm @ 100A, 10V
|
|
Vgs(th) (Max) @ Id
|
4V @ 270µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
211 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
13800 pF @ 60 V
|
|
Power Dissipation (Max)
|
300W (Tc)
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
| Mounting Type | Surface Mount |
| Datasheet | Datasheet |
