Description
Description

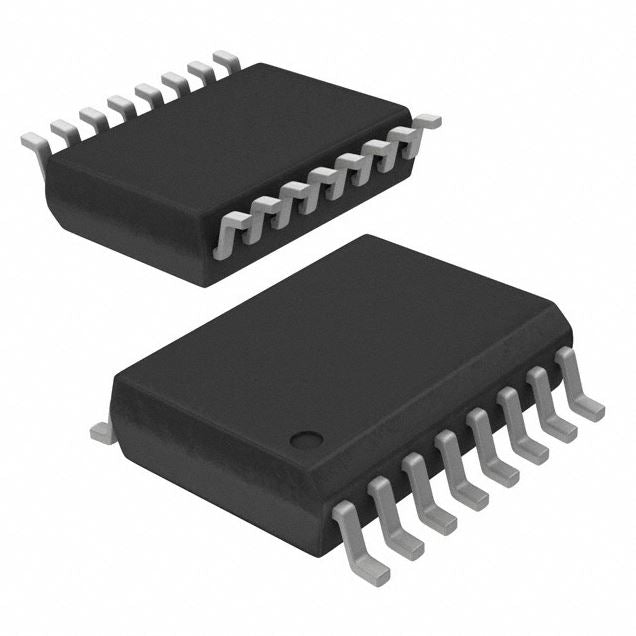

RS422, RS485 Digital Isolator 2500Vrms 3 Channel 40Mbps 30kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
| Product Attribute | |
| Manufacturer | NVE Corp/Isolation Products |
| Technology |
GMR (Giant Magnetoresistive)
|
| Type |
RS422, RS485
|
|
Isolated Power
|
No |
|
Number of Channels
|
3 |
|
Inputs - Side 1/Side 2
|
2/1
|
|
Channel Type
|
Unidirectional
|
|
Voltage - Isolation
|
2500Vrms
|
|
Common Mode Transient Immunity (Min)
|
30kV/µs
|
|
Data Rate
|
40Mbps |
|
Propagation Delay tpLH / tpHL (Max)
|
35ns, 35ns
|
|
Voltage - Supply
|
3V ~ 5.5V, 4.5V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
| Mounting Type | Surface Mount |
| Datasheet | Datasheet |
