Description
Description

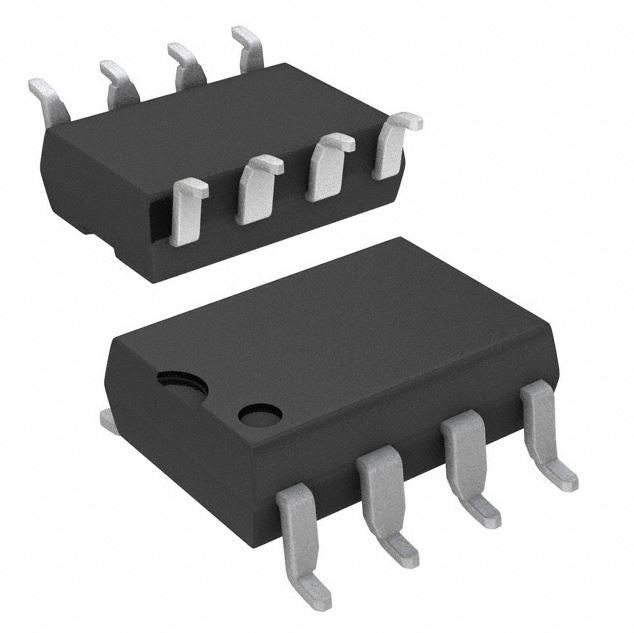

2.5A Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP Gull Wing
| Product Attribute | |
| Manufacturer | Broadcom Limited |
| Technology |
Optical Coupling
|
|
Number of Channels
|
1 |
|
Voltage - Isolation
|
3750Vrms
|
|
Common Mode Transient Immunity (Min)
|
25kV/µs
|
|
Propagation Delay tpLH / tpHL (Max)
|
500ns, 500ns
|
|
Pulse Width Distortion (Max)
|
300ns
|
|
Rise / Fall Time (Typ)
|
100ns, 100ns
|
|
Current - Output High, Low
|
2A, 2A
|
|
Current - Peak Output
|
2.5A
|
|
Voltage - Forward (Vf) (Typ)
|
1.5V
|
|
Current - DC Forward (If) (Max)
|
25 mA
|
|
Voltage - Output Supply
|
15V ~ 30V
|
|
Operating Temperature
|
-40°C ~ 100°C
|
| Mounting Type | Surface Mount |
| Datasheet | Datasheet |
