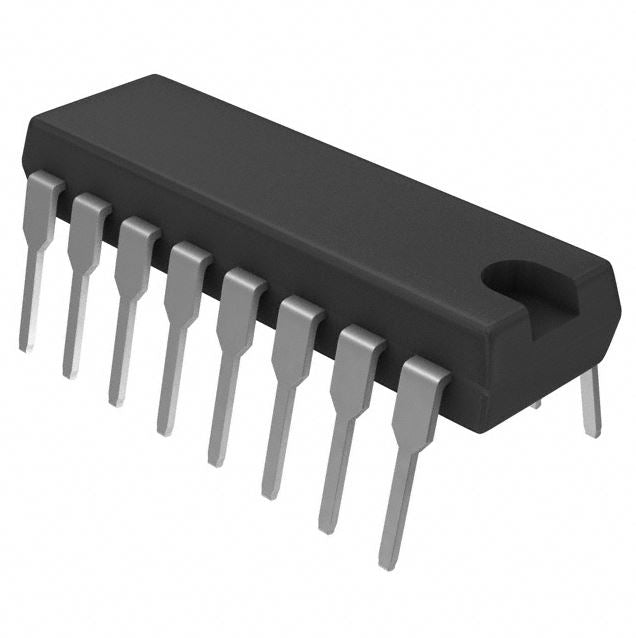

4 Circuit IC Switch 1:1 85Ohm 16-PDIP
| Product Attribute | |
| Manufacturer | Vishay Siliconix |
|
Switch Circuit
|
SPST - NC
|
|
Multiplexer/Demultiplexer Circuit
|
1:1 |
|
Number of Circuits
|
4 |
|
On-State Resistance (Max)
|
85Ohm
|
|
Channel-to-Channel Matching (ΔRon)
|
4Ohm (Max)
|
|
Voltage - Supply, Single (V+)
|
10V ~ 30V
|
|
Voltage - Supply, Dual (V±)
|
±4.5V ~ 20V
|
|
Switch Time (Ton, Toff) (Max)
|
250ns, 140ns
|
|
Charge Injection
|
5pC
|
|
Channel Capacitance (CS(off), CD(off))
|
4pF, 4pF
|
|
Current - Leakage (IS(off)) (Max)
|
500pA
|
|
Crosstalk
|
-100dB @ 1MHz
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
| Mounting Type | Through Hole |
| Datasheet | Datasheet |
