Description
Description

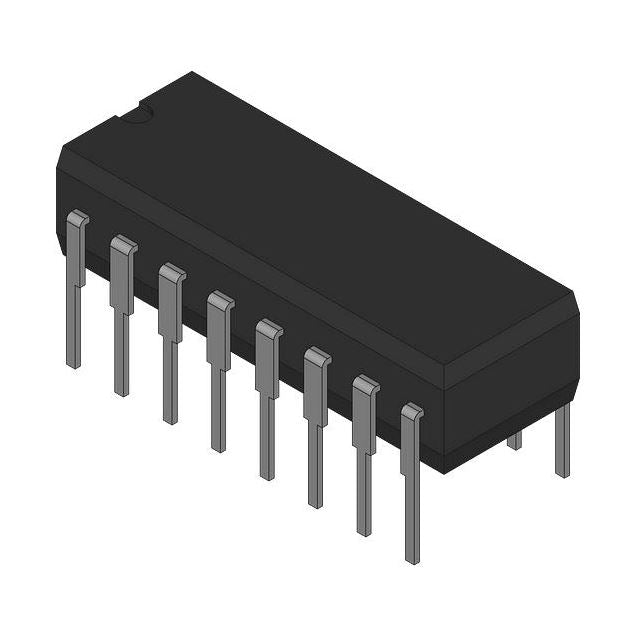

Flip Flop 1 Element D-Type 6 Bit Positive Edge 16-DIP (0.300", 7.62mm)
| Product Attribute | |
| Manufacturer | Fairchild Semiconductor |
| Function |
Master Reset
|
| Type |
D-Type
|
|
Output Type
|
Non-Inverted
|
|
Number of Elements
|
1 |
|
Number of Bits per Element
|
6 |
|
Clock Frequency
|
12 MHz
|
|
Max Propagation Delay @ V, Max CL
|
90ns @ 15V, 50pF
|
|
Trigger Type
|
Positive Edge
|
|
Current - Output High, Low
|
8.8mA, 8.8mA
|
|
Voltage - Supply
|
3V ~ 15V
|
|
Current - Quiescent (Iq)
|
4 µA
|
|
Input Capacitance
|
10 pF
|
|
Operating Temperature
|
-55°C ~ 125°C (TA)
|
| Mounting Type | Through Hole |
| Datasheet | Datasheet |
