Description
Description

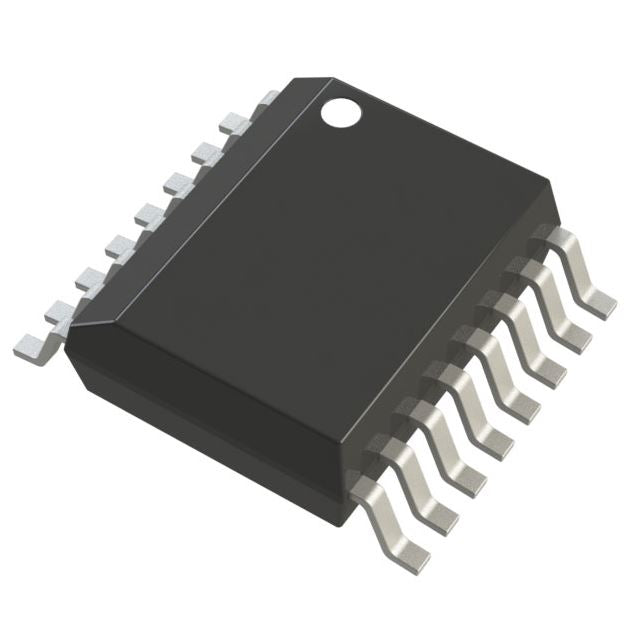

General Purpose Digital Isolator 1000Vrms 4 Channel 1Mbps 15kV/µs CMTI 16-SSOP (0.154", 3.90mm Width)
| Product Attribute | |
| Manufacturer | Analog Devices Inc. |
|
Number of Channels
|
4 |
|
Inputs - Side 1/Side 2
|
4/0
|
|
Channel Type
|
Unidirectional |
|
Voltage - Isolation
|
1000Vrms |
|
Common Mode Transient Immunity (Min)
|
15kV/µs
|
|
Data Rate
|
1Mbps |
|
Propagation Delay tpLH / tpHL (Max)
|
75ns, 75ns
|
|
Pulse Width Distortion (Max)
|
25ns
|
|
Rise / Fall Time (Typ)
|
2ns, 2ns
|
|
Voltage - Supply
|
3V ~ 5.5V
|
|
Operating Temperature
|
-40°C ~ 105°C
|
| Mounting Type | Surface Mount |
| Datasheet | Datasheet |
