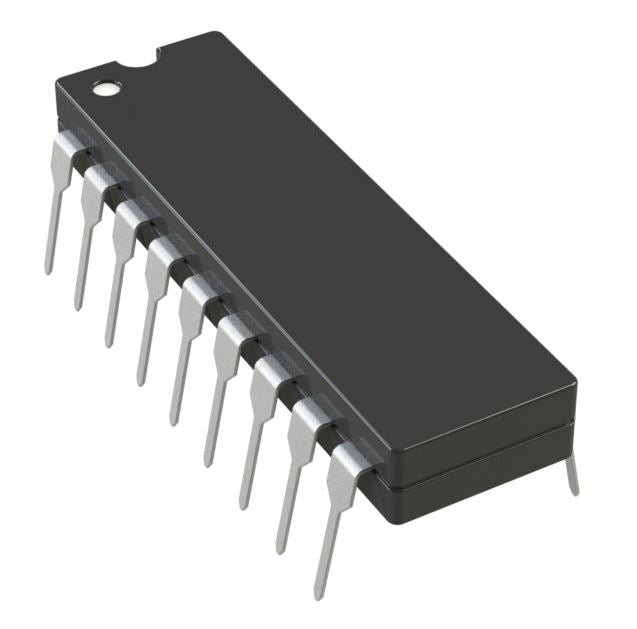

IC AD7548JN 12 Bit Digital to Analog Converter 1 20-PDIP
| Product Attribute | |
| Manufacturer | Analog Devices Inc. |
| Number of Bits | 12 |
|
Number of D/A Converters
|
1 |
| Settling Time | 1.5µs (Typ) |
|
Differential Output
|
No
|
|
Data Interface
|
Parallel
|
| Reference Type | External |
|
Voltage - Supply, Analog
|
5V, 11.4V ~ 15.75V
|
|
Voltage - Supply, Digital
|
5V, 11.4V ~ 15.75V
|
|
INL/DNL (LSB)
|
±1 (Max), ±1 (Max)
|
|
Architecture
|
R-2R |
|
Operating Temperature
|
0°C ~ 70°C |
| Mounting Type | Through Hole |
| Datasheet | Datasheet |
