Description
Description

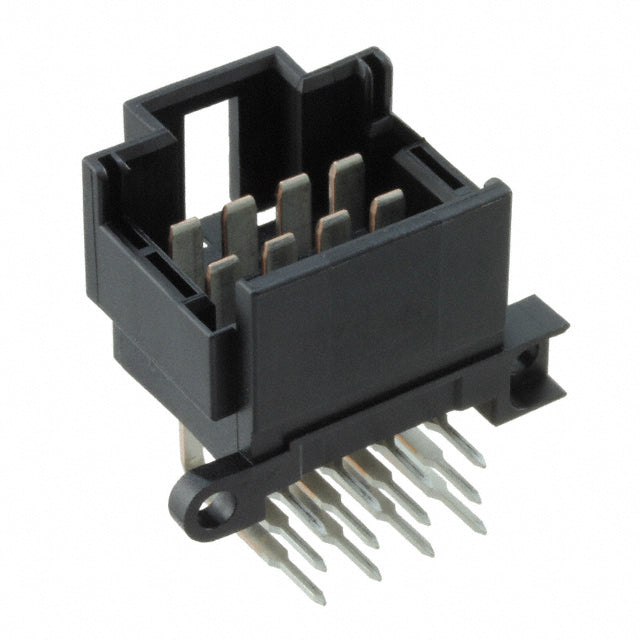

Connector Header Through Hole, Right Angle 12 position 0.197" (5.00mm)
| Product Attribute | |
| Manufacturer | TE Connectivity |
|
Contact Type
|
Tab |
|
Pitch - Mating
|
0.197" (5.00mm) |
|
Number of Positions
|
12 |
|
Number of Rows
|
3 |
|
Row Spacing - Mating
|
0.217" (5.51mm) |
|
Number of Positions Loaded
|
All |
|
Shrouding
|
Shrouded - 4 Wall
|
|
Mounting Type
|
Through Hole, Right Angle |
|
Termination
|
Solder |
|
Fastening Type
|
Latch Holder
|
|
Contact Length - Post
|
0.118" (3.00mm)
|
|
Insulation Height
|
1.012" (25.70mm)
|
|
Contact Shape
|
Rectangular
|
|
Contact Finish - Mating
|
Tin
|
|
Operating Temperature
|
-40°C ~ 100°C
|
|
Style
|
Board to Board or Cable |
| Datasheet | Datasheet |
